SAP Packs (PP, QM, PM)

A pack is a set of ready-made interfaces for a business scenario. Instead of working out which BAPI to call, which fields it requires and how to read the return, you pick “Time ticket confirmation” and the CMS creates the Interface, the Delivery and the Business Errors already configured.

There are three packs, all included in the CMS — there is no extra module to license:

The same assistant offers the ISA-95 / B2MML Transformer library. The ticket packs do not show up in it: they are installed by activating the tool in Help Desk.

Prerequisite

A pack is installed onto an Application that already has a SAP RFC External Connection linked. Without one, the install button does not even appear.

So, before you start:

1. Create the SAP RFC External Connection and test it (see SAP RFC / BAPI).
2. Create the Application that represents the system talking to SAP (your MES, for example), with a SAP RFC Keep Alive pointing at that connection.

Installing

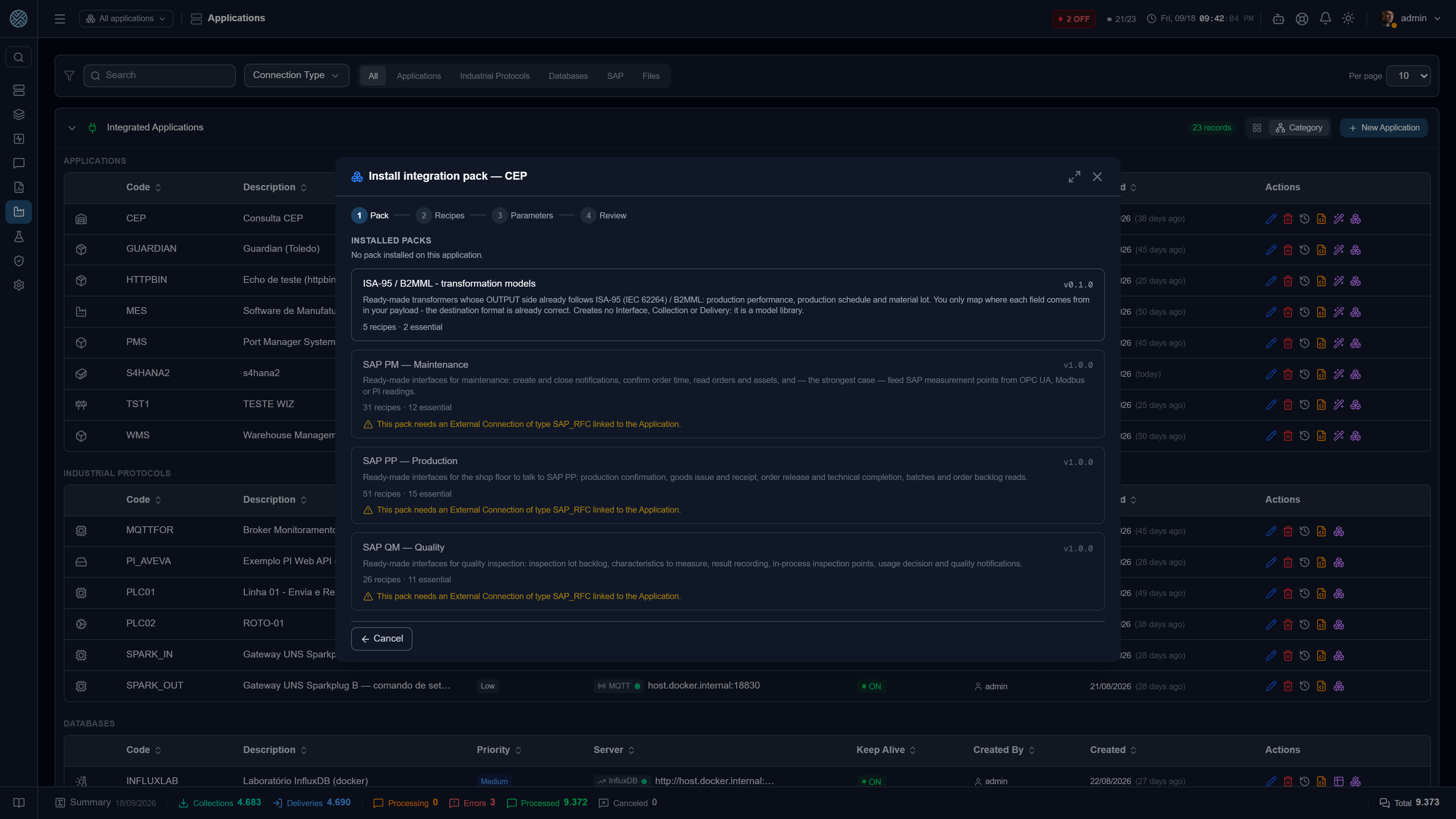

On the Applications screen, on the Application’s row, click the boxes icon. The wizard has four steps.

1. Pack

Pick PP, QM or PM. The top of the screen lists what is already installed on that Application — handy to avoid reinstalling by mistake.

2. Recipes

Each recipe is one business scenario: a Collection or a Delivery, with everything it needs. They are grouped by category and tagged with a direction:

• Collection — SAP feeds your system (read an order, read inspection characteristics).
• Delivery — your system writes into SAP (confirm production, record a result, open a notification).

Three presets at the top:

3. Parameters

Your plant’s values, entered once and applied to every selected recipe. They vary by pack, but the most common are:

4. Review

Nothing is written before this step. You see:

• How many objects will be created, updated, or are customized.
• The compatibility check against your SAP: for every selected recipe, the CMS asks SAP whether the function exists and whether the fields used exist in that release.
• The object-by-object list, with the exact name of each Interface, Collection, Delivery and Business Error.

The Install button only becomes available after that.

The compatibility check

This is the step that prevents the worst failure mode: interfaces that look right and only fail on the first message.

As a side effect, the check fills the metadata cache: the “SAP Function Parameters” popup on the Collection and Delivery screens opens instantly afterwards, even with SAP unreachable.

After installing

The interfaces show up normally under Interfaces, Collections and Deliveries — there is nothing special about them. They can be edited, deactivated or deleted like any other.

A pack Interface always has one direction only. Read ones carry the _C suffix; when the same subject has both sides, the write one gets _E — as in ..._PM_ATIVO_C and ..._PM_ATIVO_E. The rest are Deliveries.

This is not cosmetic tidiness: a Delivery inside a Collection Interface would make the scheduler process it down the wrong path (see Configuration), which is why the pack catalogue has an automated test that rejects the combination.

What your system has to do

Every Delivery created has a receiving URL shaped /{{Interface}}/{{Definition}}, and a field contract using business names. Example for the time ticket confirmation:

{
  "ordem": "000060003285",
  "operacao": "0010",
  "quantidadeBoa": 480,
  "quantidadeRefugo": 12,
  "unidade": "ST",
  "apontamentoFinal": "X"
}

The pack translates those names into SAP fields (AUFNR, VORNR, YIELD, SCRAP…). Required fields are validated before the message reaches SAP: with ordem missing, the message is rejected right away with a clear error instead of turning into an RFC failure.

Collections work the other way around: those with input parameters expose a URL your system calls passing, say, the order number, and gets the detail back ready to use.

Business errors already mapped

Every Delivery ships with the most common errors for that scenario translated into a sentence an operator understands, instead of a SAP code:

Reinstalling and updating

The wizard can be run as many times as needed on the same Application. The review step classifies each object:

• To create — does not exist yet.
• To update — exists, was created by this pack, and still matches what the pack wrote.
• Customized — exists, was created by this pack, and has been changed since.

When a new CMS version brings a new pack version, the installed packs list shows “update available”.

Uninstalling

The uninstall button sits next to each installed pack, in the wizard’s first step. It is not a blind undo: it removes what the pack created and that is still exactly as it left it, and preserves the rest, telling you why.

If anything was preserved, the pack stays listed as installed — so you can uninstall again after dealing with what was left behind.

Permission

The wizard is controlled by the /applications/packs Tool, separate from /applications:

• Create — install a pack.
• Delete — uninstall.

Every installation is written to the audit log with the pack, version, Application, selected recipes and the parameters entered.

What the pack does not do

• It does not create the Application or the Connection. Those are yours; the pack only references them.
• It does not cover Z fields or custom BAPIs. The pack delivers the baseline; adapting it to what your company has built is project work.
• It does not guess your plant’s rules. Which plant, which movement type, which notification type — that is what you enter in step 3.
